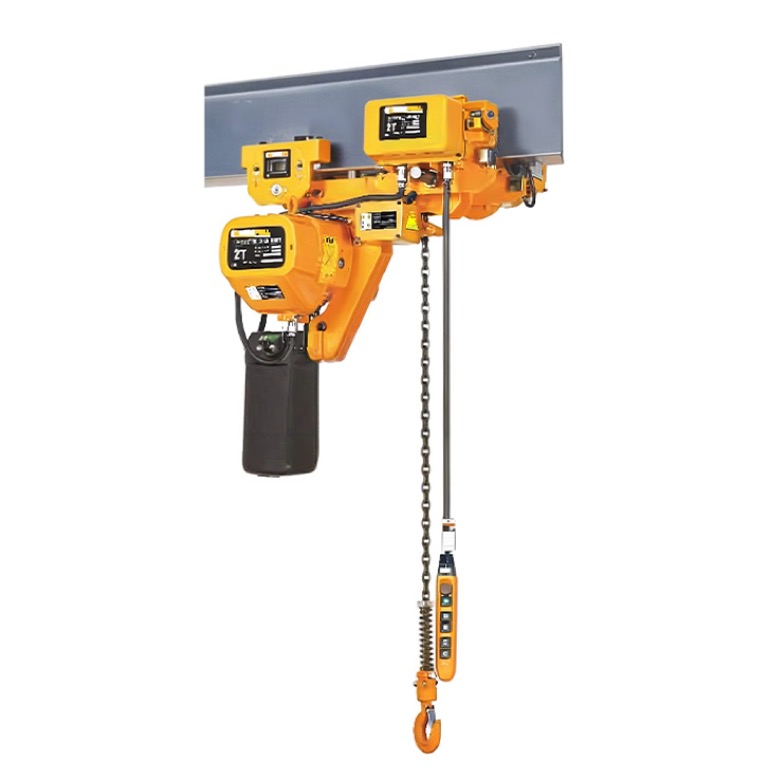

Europull Low Head Room Electric Chain Hoist
Compact electric chain hoist with integrated trolley designed specifically for facilities with low ceiling clearances and restricted hook path height.
- Capacity0.5t - 5t
- HeadroomUltra Low Headroom
- Power3-Phase 380V/415V
Need sizing help? Email info@europull.com
- Certified to EN 14492-2 / CE
- 5 models available
Technical Specifications
Model-by-model data for the Europull Low Head Room Electric Chain Hoist range.
| Model | Capacity (Tons) | Headroom (C mm) | Lift Speed (m/min) | Motor (kW) | Trolley Speed (m/min) | Weight (kg) |
|---|---|---|---|---|---|---|
| EPC-LH05 | 0.5 Ton | 280 mm | 6.8 / 2.3 | 0.8 kW | 11 / 22 m/min | 78 kg |
| EPC-LH10 | 1.0 Ton | 310 mm | 6.6 / 2.2 | 1.5 kW | 11 / 22 m/min | 96 kg |
| EPC-LH20 | 2.0 Ton | 360 mm | 5.4 / 1.8 | 3.0 kW | 11 / 22 m/min | 138 kg |
| EPC-LH30 | 3.0 Ton | 420 mm | 4.4 / 1.5 | 3.0 kW | 11 / 22 m/min | 185 kg |
| EPC-LH50 | 5.0 Ton | 510 mm | 2.8 / 0.9 | 3.0 kW | 11 / 22 m/min | 275 kg |
Need a model or configuration not listed? Email our engineering team or download the full catalog (PDF).
Key Parameters
| Parameter | Specification | Highlight |
|---|---|---|
| Standard / Norms | EN 14492-2 / CE Certified | Certified |
| Rated Capacity | 0.5 Ton to 5 Ton | 0.5t - 5t |
| Headroom Design | Short-Headroom Horizontal Reeving Geometry | Max Hook Path |
| Supply Voltage | 3-Phase 380V / 415V 50/60Hz | 3-Phase |
| Trolley Type | Integrated Electric Traversing Trolley | Dual Speed |
| Safety Braking | Dual Brake System (Electromagnetic + Mechanical) | Fail-Safe |
| Protection | IP55 Enclosure Rating, Overload Protection | Industrial |
Key Features & Advantages
Maximizes Usable Lift Height
Saves up to 40% headroom compared to conventional hoist and trolley combinations.
Counter-Balanced Trolley Frame
Ensures even weight distribution on beam flanges for smooth, quiet traversing.
Standards & Compliance
EN 14492-2 European Norms
Electric hoist standard.
CE Certified
Factory load tested with certificate.
Product Overview
Ideal for workshops, low-roof factories, shipping containers, and cramped mezzanine floors where maximizing vertical hook travel is critical.
Frequently Asked Questions
The Europull Low Head Room Electric Chain Hoist is available in 5 models: EPC-LH05, EPC-LH10, EPC-LH20, EPC-LH30, EPC-LH50. Capacity (Tons) ranges from 0.5 Ton to 5.0 Ton. Full figures for every model are in the technical specifications table on this page.
The Europull Low Head Room Electric Chain Hoist covers 0.5t - 5t.
The Europull Low Head Room Electric Chain Hoist is manufactured to EN 14492-2 / CE.
The Europull Low Head Room Electric Chain Hoist's headroom Design: Short-Headroom Horizontal Reeving Geometry.
The Europull Low Head Room Electric Chain Hoist's supply Voltage: 3-Phase 380V / 415V 50/60Hz.
The Europull Low Head Room Electric Chain Hoist's trolley Type: Integrated Electric Traversing Trolley.
Click "Request a Quote" on this page to add the Low Head Room Electric Chain Hoist to your quote cart, or email info@europull.com with the model code and quantity you need.
